When winter temperatures plunge below freezing, your solar water heating system faces its toughest test. A poorly designed or unprotected system can suffer burst pipes, cracked collectors, and costly repairs ranging from $1,000 to $4,000. But with the right freeze-protection strategy, proper insulation, and climate-appropriate components, a solar heat water system can deliver reliable hot water year-round, even in Minnesota, Colorado, or Maine.

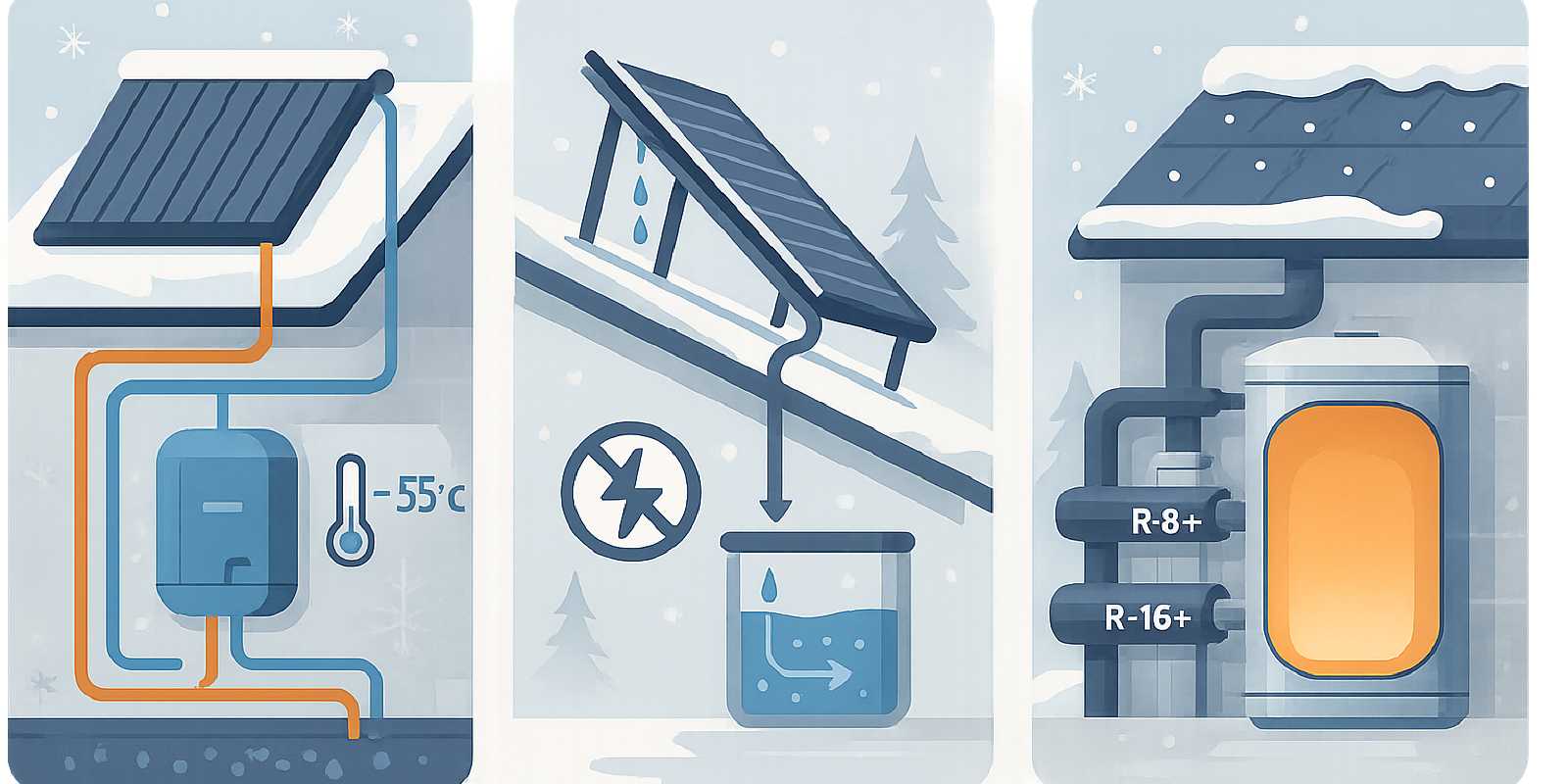

This guide walks you through the three pillars of cold-climate solar success: closed-loop glycol systems, drainback designs, and comprehensive insulation. You’ll learn how to choose between these approaches, size components correctly, and maintain peak solar water heating efficiency through the harshest winters.

---

❄️ The Freeze Factor: Why Cold Climates Demand Special Solar Design

Standard solar water heating systems circulate potable water directly through rooftop collectors. In sunny, mild climates, this simple approach works beautifully. But when temperatures drop below 32°F (0°C), water freezes, expands, and destroys unprotected components.

The Real Cost of Freeze Damage

While comprehensive national statistics remain limited, field reports and installer surveys paint a clear picture:

• Minor repairs (pipe replacement, glycol top-off): $200–$800
• Major repairs (collector replacement, system re-piping): $1,000–$4,000+
• Full system replacement: $4,000–$7,000

Source: U.S. Department of Energy

The U.S. Department of Energy explicitly warns that only freeze-protected systems should be installed in climate zones prone to hard freezes. Legacy systems or improperly retrofitted units remain the most vulnerable to catastrophic winter failures.

Climate Zones at Risk

U.S. hardiness zones 5–8 (spanning from the Upper Midwest and New England to mountainous regions and Alaska) experience frequent sub-freezing temperatures. In these areas, three freeze-protection strategies dominate:

• Closed-loop glycol systems: Use antifreeze solution in a sealed loop
• Drainback systems: Gravity-drain collectors when temperatures drop
• Passive integral collector-storage (ICS): Store water inside insulated, freeze-resistant tanks

For active solar water heating design, glycol loops and drainback systems are the industry standards.

Quick Freeze-Risk Calculator

Will your location freeze?

Enter your typical winter low temperature:

• Above 32°F (0°C): Standard direct systems work; consider freeze-valve backup
• 20–32°F (-7 to 0°C): Drainback or mild glycol protection recommended
• Below 20°F (-7°C): Closed-loop glycol system essential

Check your USDA hardiness zone at USDA Plant Hardiness Zone Map to confirm your baseline risk.

Why Evacuated Tubes Excel in Cold

Solar evacuated tubes outperform flat-plate collectors in cold, cloudy, and windy conditions. Their double-glass vacuum insulation minimizes heat loss, maintaining 50–70% of clear-sky output even under overcast winter skies.

In contrast, flat-plate collectors lose more heat in cold and wind, dropping to 30–50% efficiency in diffuse light. For climate zones 5–8, evacuated tubes are often the best choice for a solar thermal collector array.

Source: SolarTechOnline

---

🔁 Closed-Loop Glycol Systems: Integrating a Solar Water Heater with Heat Exchanger

Closed-loop glycol systems are the gold standard for harsh climates. They circulate a propylene glycol-water mixture through a pressurized loop, transferring heat to potable water via a solar water heater with heat exchanger. This design eliminates freeze risk and allows flexible tank placement.

How Glycol Systems Work

1. Rooftop collectors (evacuated tubes or flat-plates) heat the glycol mixture
2. A controller monitors collector and tank temperatures
3. When the collector is 5–10°C warmer than the tank, a solar water heater with pressure pump circulates the glycol
4. The heated glycol flows through a heat exchanger coil inside the storage tank, warming domestic water
5. Cooled glycol returns to the collectors to repeat the cycle

Because propylene glycol doesn’t freeze until -55°C (-67°F) at typical concentrations, the system remains safe even during extreme cold snaps.

Recommended Propylene Glycol Concentrations

Concentration	Freeze Point	Climate Suitability
40% by volume	-20°C (-4°F)	Mild freeze zones
50% by volume	-28°C (-18°F)	Moderate freeze zones
60% by volume	-35°C (-31°F)	Severe freeze zones

Source: U.S. Department of Energy

Important: Concentrations above 60% reduce heat transfer efficiency and increase pump strain. Most manufacturers recommend staying between 40–60% and using solar-rated propylene glycol with corrosion inhibitors (ASTM D1384 certified).

Corrosion Inhibitors and Fluid Quality

Solar-rated glycol fluids contain inhibitors to protect copper, steel, and aluminum from corrosion and scale. Common additives include silicates, phosphates, and organic acids. Always use fluids certified for solar thermal use, such as Dowtherm SR-1.

Replacement interval: Every 3–5 years, with annual pH and freeze-point testing to ensure continued protection.

Source: American Solar Energy Society

Pros and Cons of Glycol Loops

Pros:

• ✅ Excellent freeze protection to -55°C
• ✅ Flexible tank placement (indoors, basement, utility room)
• ✅ Automatic operation with minimal user intervention
• ✅ Scalable for larger systems and multiple zones
• ✅ Works with both flat-plate and evacuated tube collectors

Cons:

• ❌ Higher upfront cost ($5,000–$8,000 installed)
• ❌ Slightly lower efficiency than pure water (glycol viscosity)
• ❌ Periodic glycol testing and replacement required
• ❌ Pump and controller maintenance (expected life ~10–15 years)
• ❌ Potential stagnation issues during prolonged low demand

Mini Case Study: 3-Collector Evacuated Tube Array in Minnesota

Location: Rural cabin near Duluth, Minnesota (USDA Zone 3b, winter lows to -30°F)

System design:

• Three 30-tube solar evacuated tubes collectors (total ~90 tubes)
• 80-gallon indirect storage tank with dual heat exchanger coils
• Closed-loop glycol system (50% propylene glycol concentration)
• Variable-speed solar powered heat exchanger pump and differential controller
• Electric backup element (upper tank)

Performance:

• Summer: Tank temperatures reach 140–160°F; backup rarely activates
• Winter: Clear days preheat water to 80–100°F; backup covers cloudy periods
• Annual solar fraction: ~60% (saves ~$350/year on electricity)

Key lessons:

• Steeper tilt angle (latitude + 15°) maximizes winter sun capture
• Heavy pipe insulation (R-8 or better) prevents heat loss in unheated attic runs
• Snow sheds naturally from evacuated tubes due to heat and tilt
• Glycol concentration and pressure checked annually; fluid replaced after 4 years

Cost: $6,800 installed; 30% federal tax credit reduced net cost to $4,760; simple payback ~14 years (faster with rising electric rates).

This real-world example demonstrates that a properly designed glycol-loop system paired with evacuated tubes delivers strong performance even in extreme cold.

---

💧 Drainback Systems: A Simple Gravity-Powered Alternative

Drainback systems offer a passive, mechanical approach to freeze protection. When solar gain is insufficient or outdoor temperatures fall below a threshold, the circulation pump stops and gravity drains all water from the collectors and exposed piping into an indoor reservoir tank. This eliminates freeze risk without antifreeze.

How Drainback Systems Work

1. Collectors are mounted above the drainback reservoir
2. When the sun heats the collectors, a pump lifts water from the reservoir through the collector loop
3. Heated water returns to the reservoir or directly to the storage tank (depending on configuration)
4. When the pump stops (low sun, freezing temperatures, power outage), all water drains back to the reservoir by gravity
5. Air fills the collectors and piping, preventing freeze damage

Because the system uses pure water as the heat transfer fluid, there’s no glycol degradation or chemical maintenance.

Design Requirements for Reliable Drainback

• Proper pipe slope: All collector and return lines must pitch continuously downward toward the reservoir (minimum 1/4 inch per foot)
• No check valves or air traps in the drainback loop
• Reservoir sizing: Must hold the full volume of fluid in the collector loop plus a small buffer (typically 5–10 gallons)
• Pump head: Must overcome elevation and friction to fill collectors; variable-speed pumps improve efficiency
• Air venting: Automatic air vents at high points ensure complete drainage

Pros and Cons of Drainback Systems

Pros:

• ✅ No antifreeze required; no chemical maintenance or replacement
• ✅ Excellent freeze protection (if installed correctly)
• ✅ Works during power outages (gravity drains automatically)
• ✅ Slightly higher thermal efficiency than glycol (pure water heat transfer)
• ✅ Lower long-term maintenance costs

Cons:

• ❌ More complex installation (precise pipe slopes required)
• ❌ Limited tank placement flexibility (must be below collectors)
• ❌ Higher initial installation labor cost
• ❌ Risk of incomplete drainage if piping is misaligned
• ❌ Noisy when refilling collectors (gurgling sounds)

When to Choose Drainback Over Glycol

• Moderate freeze climates (zones 5–6) with occasional freezing
• Off-grid or power-outage-prone locations (gravity drainage continues)
• Low-maintenance preference (no glycol testing or replacement)
• Hands-on homeowners comfortable with slightly more complex installation

For severe, prolonged freeze climates (zones 3–4), closed-loop glycol systems remain the safer, more automatic choice.

---

🧱 Insulation Mastery: Protecting Collectors, Pipes & Storage Tanks

Even the best freeze-protection strategy fails if heat leaks away before reaching your fixtures. Comprehensive insulation is the third pillar of cold-climate solar water heating efficiency.

Pipe Insulation R-Values: A Cheat Sheet

Location	Minimum R-Value	Recommended Material
Indoor runs	R-4	Foam pipe sleeves
Unheated attic/crawl	R-8	Closed-cell foam + vapor barrier
Outdoor/exposed	R-10+	UV-rated foam + heat tape backup

All outdoor insulation must be UV-rated or protected with metal jacketing. Even brief exposure to sun degrades standard pipe insulation, creating cold spots and condensation issues.

Tank Insulation Strategies

• Pre-insulated tanks: Look for models with R-16 or higher factory foam
• Tank blankets: Add an R-10 insulation blanket to older or under-insulated tanks
• Hot water outlet insulation: Insulate the first 6 feet of hot water outlet piping to reduce standby losses

For two-tank preheat configurations, insulate both the solar storage tank and the backup heater tank.

Collector Box Insulation (DIY Batch Systems)

If you’re building a simple batch collector, the insulated enclosure is critical:

• Back and sides: R-10 to R-20 (fiberglass, rockwool, or rigid foam)
• Glazing: Double-pane glass or polycarbonate
• Reflective liner: Aluminum foil or reflective paint to maximize absorption
• Weatherproof sealing: Caulk all joints to prevent moisture infiltration

Heat Tape and Freeze Sensors

In the coldest climates, add self-regulating heat tape to vulnerable pipe sections (e.g., outdoor runs, unheated garages). Combine with freeze sensors and automatic controllers to activate heat tape only when needed, minimizing electricity use.

---

📊 Performance & Efficiency Compared: Glycol vs Drainback vs Hybrid

How do glycol loops and drainback systems stack up in real-world winter performance? The answer depends on climate severity, installation quality, and system sizing.

Thermal Efficiency: Glycol vs Pure Water

• Drainback (pure water): Slightly higher heat transfer efficiency due to water’s superior thermal properties
• Glycol loop (40–60% glycol): Small efficiency penalty (~5–10%) due to viscosity and lower specific heat
• Real-world impact: In well-designed systems, this difference is minor compared to insulation, collector tilt, and local weather

Winter Solar Fraction by System Type

Climate Zone	Glycol Loop	Drainback	Notes
Zone 5 (mild)	50–70%	55–75%	Both perform well
Zone 4 (cold)	40–60%	45–65%	Drainback requires perfect install
Zone 3 (severe)	30–50%	❌ Not recommended	Glycol loop only

Winter solar fraction = percentage of hot water demand met by solar during December–February

Both systems typically achieve 50–80% annual solar fractions in zones 5–6 with proper sizing and evacuated tube collectors.

Hybrid Systems: Best of Both Worlds?

Some advanced designs combine elements of both approaches:

• Glycol loop with drainback backup: Uses glycol as primary freeze protection but can drain if glycol fails or degrades
• PV-powered drainback: Solar water heater with pressure pump powered directly by photovoltaic panels eliminates grid dependency
• Thermosiphon + electric heat tape: Passive circulation with active freeze protection for exposed piping

For most homeowners, a well-executed single-strategy system (glycol or drainback) is simpler and more reliable than hybrid complexity.

---

✅ Step-By-Step Design & Installation Checklist for Sub-Zero Success

Proper solar water heating design and installation are essential for long-term, trouble-free operation. Follow this checklist to ensure your system survives winter.

Pre-Installation Assessment

• Site solar access: Minimum 4–6 hours of unshaded sun daily, year-round
• Roof condition: Structurally sound; flashing and penetrations waterproof
• Local codes: Verify compliance with ICC 2024 Plumbing/Mechanical Codes and state-specific amendments (see below)
• Sizing: Match collector area to household demand (typically 40–80 sq ft for 3–4 people)
• Incentive eligibility: Confirm SRCC OG-300 certification for federal tax credit and rebates

Code Compliance and Licensing

In cold states like Minnesota, Colorado, and Maine, solar thermal systems must comply with:

• SRCC OG-300 certification: Ensures system performance and quality; required for most incentives
• ICC 2024 International Plumbing Code (IPC): Governs potable water systems, backflow prevention, and anti-scald devices
• ICC 2024 International Mechanical Code (IMC): Addresses piping, heat exchangers, and controls
• State-specific codes:
  • Minnesota: Minnesota Plumbing Code (based on IPC); licensed plumber required
  • Colorado: IPC/IMC with amendments; state and local licensing enforced
  • Maine: Maine Plumbing Code (aligned with IPC); licensed plumber required

Installer licensing: Installation typically requires a licensed plumber, mechanical contractor, or NABCEP-certified solar thermal installer. Verify local permitting and inspection requirements before beginning work.

Component Selection

For glycol loop systems:

• Solar thermal collector array (evacuated tubes preferred)
• Indirect storage tank with heat exchanger coil (80–120 gallons)
• Solar-rated propylene glycol (40–60% concentration)
• Variable-speed circulation pump (sized for elevation and flow)
• Differential controller with tank and collector sensors
• Expansion tank, pressure relief valve, fill/drain valves
• UV-rated pipe insulation (R-8 minimum outdoors)

For drainback systems:

• Solar collectors (evacuated tubes or flat-plates)
• Drainback reservoir tank (5–10 gallons)
• Storage tank (direct or indirect)
• Properly sloped piping (copper or PEX rated for solar)
• Circulation pump with sufficient head pressure
• Controller with freeze-protection logic
• Air vents and vacuum breakers

Installation Steps (Glycol Loop Example)

1. Mount collectors: Attach to rafters with flashing; orient south at latitude + 10–15° tilt for winter optimization
2. Route piping: Run insulated supply/return lines through attic or conditioned space; avoid exterior runs if possible
3. Install heat exchanger tank: Place indoors (basement, utility room); connect cold inlet and hot outlet to existing system
4. Plumb glycol loop: Connect collectors to tank heat exchanger with 3/4-inch copper or PEX; add valves, expansion tank, and pressure relief
5. Install pump and controller: Mount pump on return line; attach temperature sensors to collector outlet and tank mid-point; wire to controller
6. Fill and pressurize: Mix glycol to target concentration; fill loop via fill valve; purge air; pressurize to 20–30 psi
7. Insulate all piping: Wrap outdoor and unheated runs with R-8+ closed-cell foam and UV jacket
8. Commission system: Verify pump operation, leak-free joints, correct sensor readings, and anti-scald mixing valve function (set to 120–122°F)
9. Final inspection: Schedule required local building and plumbing inspections

Common Installation Mistakes to Avoid

• Inadequate freeze protection: Using too-low glycol concentration or forgetting drainback slope
• Poor insulation: Leaving exposed pipe sections or using non-UV-rated materials outdoors
• Improper sensor placement: Sensors must contact fluid or metal directly (not insulation)
• Undersized pumps: Insufficient head pressure in drainback systems causes incomplete filling
• Lack of expansion tank: Glycol expands when heated; missing expansion tank risks pressure relief discharge
• Snow accumulation: Failing to account for snow load or drainage on collectors

Source: American Solar Energy Society

---

🛠️ Winter Maintenance & Monitoring: Keeping the System Trouble-Free

Even the best-designed solar heat water system requires routine attention. Follow this seasonal maintenance schedule to maximize performance and avoid costly failures.

Annual Fall Inspection Checklist

Before the first freeze:

• Test glycol concentration: Use a refractometer; top up or replace if below target
• Check system pressure: Glycol loops should hold 20–30 psi; drainback reservoirs should be full
• Inspect collectors: Clean glazing; replace any failed evacuated tubes; verify mounts and flashing
• Examine insulation: Repair UV damage, gaps, or moisture infiltration
• Verify pump operation: Listen for unusual noise; confirm flow when controller calls for heat
• Test controller logic: Manually trigger pump; confirm sensors read accurately
• Drain and winterize unused systems: If the system will be idle, drain glycol or water to prevent stagnation damage

Mid-Winter Monitoring

• Clear snow from collectors: Use a roof rake or let natural shedding occur (evacuated tubes heat up and melt snow faster)
• Monitor tank temperatures: Expect 80–120°F on clear days; activate backup if solar contribution drops below expectations
• Check for leaks or drips: Frozen pipes can crack and leak when thawed
• Verify freeze-protection operation: For drainback, confirm reservoir has drained; for glycol, verify no ice in exposed piping

Spring Tune-Up

• Glycol replacement (if due): Every 3–5 years or if pH/freeze-point tests fail
• Pump and controller service: Replace worn pumps (~10–15 year life); update controller firmware if available
• Tank maintenance: Flush sediment; inspect/replace anode rods; test backup heater element/burner
• Performance logging: Compare current output to baseline; investigate declines

Troubleshooting Common Winter Issues

Problem: No heat on sunny days

• Check: Dirty collectors, stuck check valve, failed pump, broken tube, incorrect controller settings
• Fix: Clean, repair, or replace failed component

Problem: Stagnation/relief valve discharge

• Check: Oversized system, prolonged low demand, failed controller
• Fix: Add stagnation controls; consider partial shading or reduced collector area

Problem: Freeze damage despite protection

• Check: Low glycol concentration, incomplete drainback drainage, power outage during freeze
• Fix: Test/replace glycol; verify pipe slope; add backup heat tape

Problem: Air bubbles or noise in glycol loop

• Check: Low system pressure, air not purged during fill, leak
• Fix: Bleed air; top up fluid; repair leaks; pressurize system

Source: U.S. Department of Energy

Professional Servicing Interval

For active systems, schedule professional inspection every 3–5 years:

• Glycol analysis and replacement
• Pump flow testing
• Structural and roof inspection
• Full system recommissioning

---

❓ Frequently Asked Questions

Can I use car antifreeze in my solar water heater?
No. Automotive antifreeze (ethylene glycol) is toxic and not rated for solar thermal use. Always use solar-rated propylene glycol with corrosion inhibitors.

How much does a cold-climate solar water heating system cost?
Expect $5,000–$8,000 installed for a glycol-loop system with evacuated tubes. The 30% federal tax credit reduces net cost to $3,500–$5,600. See our cost guide for details.

Will my system work during a power outage?
Drainback systems continue to drain by gravity during outages. Glycol systems stop circulating but remain freeze-protected. Consider a battery backup for the pump if grid reliability is a concern.

How do I know if my glycol needs replacement?
Test freeze point and pH annually. Replace glycol if freeze point rises above target (-20°C for 40% mix) or pH drops below 7.0 (indicates degradation).

Can I retrofit my existing water heater with solar?
Yes. Many homeowners add a preheat tank or retrofit kit to existing electric or gas heaters. This is often the most cost-effective upgrade path.

---

💡 Related Articles

• Passive vs Active Solar Water Heating: Which One Fits Your Home?
• Evacuated Tubes vs Flat-Plate Collectors: Performance in All Climates
• Step-by-Step: Installing a Residential Solar Water Heating System
• Maintenance & Winterization: Keep Your Solar Hot Water Running
• Troubleshooting Guide: Not Hot Enough, Pump Stuck, Freeze Damage
