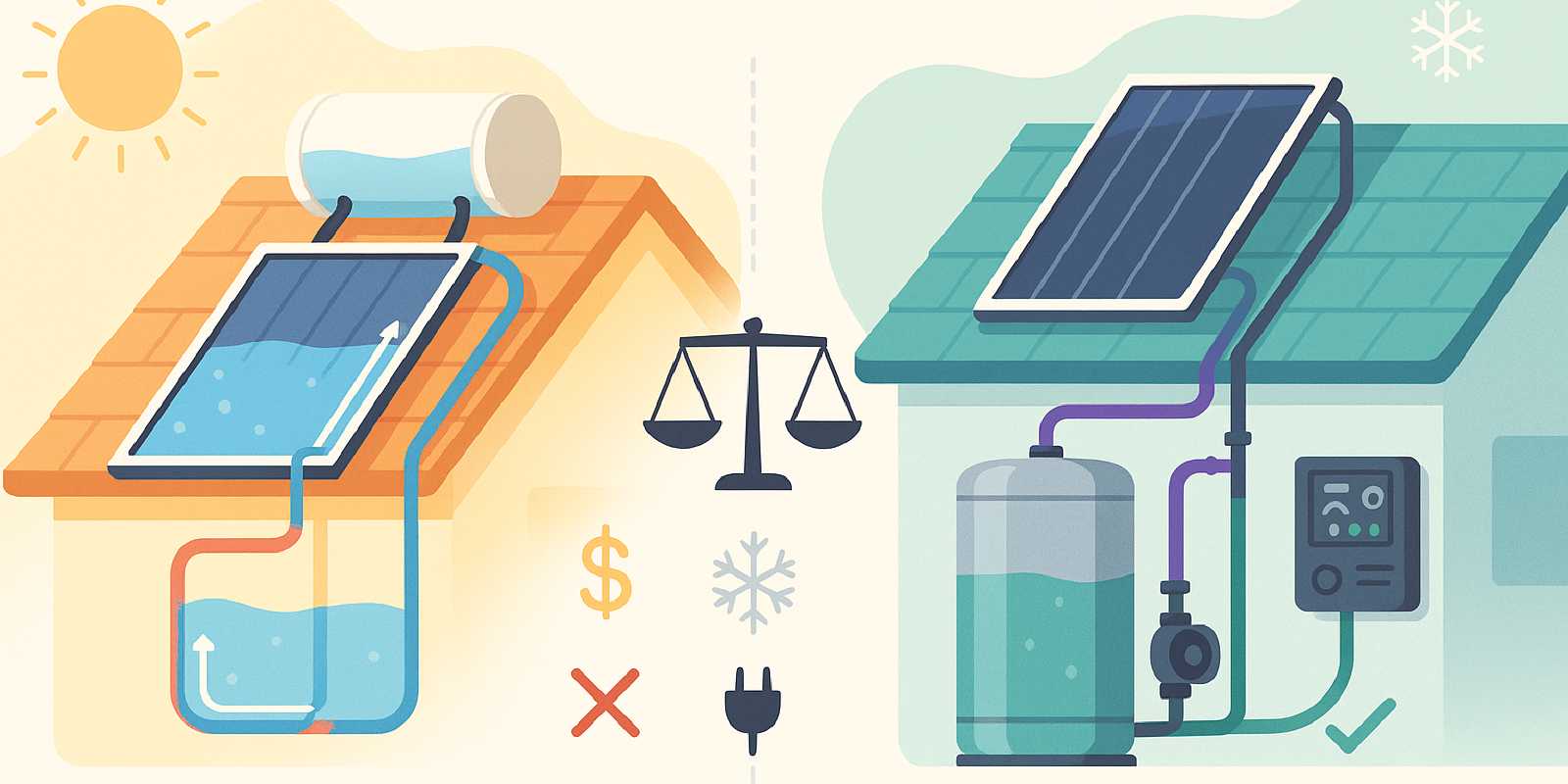

Choosing between passive and active solar water heating can feel overwhelming. Both systems harness the sun’s energy to heat your water, but they work in fundamentally different ways—and each suits different homes, climates, and budgets. This guide walks you through how each type operates, what they cost, and which one matches your situation so you can make a confident, informed decision.

If you’re a homeowner looking to cut energy bills, reduce your carbon footprint, or gain independence from rising utility rates, understanding the trade-offs between passive solar water heating and active solar water heating is your first step. By the end of this article, you’ll know exactly which system fits your roof, your climate, and your household’s hot-water needs.

---

🌊 How Passive Solar Water Heating Works

Passive solar water heating systems rely entirely on natural convection and gravity—no pumps, no controllers, no electricity. Cold water enters the bottom of a collector or storage tank, absorbs heat from the sun, and rises naturally as it warms. This thermosiphon effect keeps warm water flowing to your tap without any mechanical help.

There are two main types of passive solar water heating systems:

Thermosiphon Solar Water Heating

In a thermosiphon solar water heating setup, the storage tank is mounted above the solar collector. As the collector heats water, the hot water rises into the tank, and cooler water from the tank flows down into the collector to be heated. This continuous loop relies solely on the difference in water density between hot and cold.

Best for:

• Homes in warm, freeze-free climates
• Roof structures that can safely support a tank above the collector
• Off-grid or backup-conscious homeowners who want a system that works during power outages

Integral Collector Storage (ICS)

Integral collector storage systems, also called batch or breadbox heaters, combine the collector and storage tank into one insulated unit. Cold water enters the tank inside the collector box, heats up throughout the day, and is then drawn off as needed. These are the simplest passive designs, but they lose heat overnight and are very vulnerable to freezing.

Best for:

• Seasonal use in sunny climates
• Outdoor showers, garden sinks, or off-grid cabins
• DIY enthusiasts looking for a low-cost, straightforward project

Passive systems are praised for their simplicity, reliability, and minimal maintenance. With no moving parts, there’s little to break—making them a favorite among off-grid enthusiasts and prepping communities. However, they do have limitations in colder climates and require careful roof placement to enable natural circulation.

---

⚙️ How Active Solar Water Heating Works

Active solar water heating systems use pumps and controllers to circulate water or a heat-transfer fluid between the collectors on your roof and a storage tank located anywhere on your property—basement, garage, or utility room. A solar water heating pump (also called a solar water heater circulation pump) moves fluid when sensors detect that the collector is hotter than the tank, maximizing heat capture.

There are two main configurations:

Direct Active Systems

In direct systems, potable water is pumped directly through the collectors and back to the storage tank. These work well in warm climates where freezing is rare, but they require freeze protection measures—such as recirculation valves or automatic draindown—in regions with occasional cold snaps.

Indirect Active Systems

Indirect systems circulate a propylene glycol antifreeze mixture through a closed loop in the collectors. This heated glycol then passes through a heat exchanger in the storage tank to transfer heat to your household water. Indirect systems are the go-to choice for cold climates because the glycol won’t freeze or burst pipes.

Key components:

• Solar water heating pump: Circulates fluid through the loop
• Controller with temperature sensors: Turns the pump on when collectors are hotter than the tank
• Heat exchanger: Transfers heat from glycol to potable water (indirect systems)
• Expansion tank and pressure relief valves: Safety devices for closed-loop systems

Active systems deliver higher thermal efficiency—typically 50–70% compared to 35–50% for passive systems—because they can precisely control circulation, reduce heat loss, and optimize performance across all seasons. The trade-off is added complexity, higher upfront cost, and ongoing maintenance for pumps, controllers, and glycol fluid.

For more details on components, see our guide on all the parts you need: pumps, controllers, valves, heat exchangers.

---

📊 Passive vs Active: Side-by-Side Comparison

To help you quickly see which system fits your needs, here’s a color-coded comparison table highlighting the winner in each category:

Factor	Passive Solar Water Heating System	Active Solar Water Heating	Winner
Upfront Cost	$1,000–$3,700	$4,000–$10,000+	Passive ✅
Thermal Efficiency	35–50%	50–70%	Active ✅
Maintenance	Very low	Moderate (pumps, glycol)	Passive ✅
Climate Versatility	Mild/warm only	All climates	Active ✅
Freeze Protection	Poor (freeze risk)	Excellent (glycol loops)	Active ✅
Installation Complexity	Simple (DIY-friendly)	Complex (often pro install)	Passive ✅
Power Outage Resilience	Works without power	Pump needs electricity	Passive ✅
Annual Energy Savings	~30–50%	~50–70%	Active ✅
Lifespan	20+ years	20+ years (pumps 10–15)	Tie ⚠️

Key Takeaways:

• Choose passive if you live in a warm climate, want minimal maintenance, and value simplicity and off-grid reliability.
• Choose active if you face cold winters, need maximum efficiency, or want flexible tank placement and scalable performance.

For homeowners in sunny states like Arizona, California, and Florida, passive systems can be a cost-effective, low-hassle solution. In colder regions—Pacific Northwest, Northeast, or high-altitude areas—active systems with glycol freeze protection are the safer, more efficient choice.

---

💰 Cost, Incentives & Payback Periods

Understanding the full financial picture—upfront cost, available incentives, and long-term savings—is essential when choosing solar water heating for homes.

Upfront Costs

• Passive systems: Typically cost $1,000 to $3,700 for the system alone. Installation is often DIY-friendly, saving labor costs. Smaller thermosiphon units for 1–3 people can be on the lower end; larger ICS tanks or premium evacuated-tube passive systems cost more.
• Active systems: Range from $4,000 to over $10,000 installed, depending on system size, collector type (flat-plate or evacuated tubes), and whether you choose a direct or indirect configuration. Professional installation is usually required, adding $1,500–$3,000 to the total.

Federal and State Incentives

The U.S. Residential Clean Energy Credit (formerly the solar Investment Tax Credit) offers 30% back on the total installed cost through 2032. This applies to both passive and active systems, provided they meet SRCC OG-300 certification requirements and supply at least 50% of your home’s hot water from solar.

Example:

• $7,000 active system → 30% federal credit = $2,100 back → net cost $4,900
• $3,000 passive system → 30% federal credit = $900 back → net cost $2,100

In sunny states, additional rebates may be available:

• Arizona: State solar tax credit up to $1,000; utility rebates vary by provider.
• California: California Solar Initiative (CSI) Thermal Program rebates (funding varies); check with local utilities.
• Florida: Some utility companies offer incentives; no statewide solar rebate, but sales-tax exemption on solar equipment.

For full details on qualifying and applying, see our guide on rebates and credits: how to qualify for solar hot water incentives.

Payback Periods

Payback depends on your hot-water usage, local energy rates, and sunshine hours:

• Passive systems: With lower upfront cost and moderate savings (30–50% reduction in water-heating energy), payback typically ranges from 5 to 10 years in sunny climates.
• Active systems: Higher efficiency (50–70% savings) can offset the larger investment, yielding payback in 5 to 15 years, especially in areas with high electricity or gas rates and strong sun.

Mini Payback Calculator Template:

1. Annual hot-water energy use: Check your utility bills or estimate ~3,000–4,500 kWh/year for a typical family.
2. Solar fraction: Passive ~40%, Active ~60% (adjust for your climate).
3. Annual savings: (Annual use × solar fraction) × your kWh rate.
4. Net system cost: Total cost – incentives.
5. Simple payback: Net cost ÷ annual savings.

Example (California, $0.25/kWh):

• Active system, 4,000 kWh/year, 60% solar fraction → 2,400 kWh saved → $600/year.
• Net cost after incentives: $4,900.
• Payback: $4,900 ÷ $600 = ~8 years.

After payback, you enjoy net savings for the remaining 10–20+ years of the system’s life—often totaling thousands of dollars and offsetting 30–50 tons of CO₂.

---

🔧 Installation & Maintenance Requirements

Installation: Passive Systems

Passive solar water heating systems are relatively simple to install, making them popular DIY projects. The main steps include:

1. Mount the collector and tank: Ensure the tank is above the collector for thermosiphon circulation. Roof pitch between 15° and 45° is ideal.
2. Plumb cold inlet and hot outlet: Use standard copper or PEX piping; include pressure/temperature relief valves and an anti-scald mixing valve.
3. Secure and weatherproof: Properly flash roof penetrations and insulate exposed pipes.
4. Fill and test: Purge air, check for leaks, and confirm circulation in sunlight.

Roof load considerations:

• Integral collector storage units can weigh 250–400 pounds when full. Verify your roof can support this load, especially if you have older framing or a low-pitch roof. In some cases, structural reinforcement or engineer approval may be required under the 2021 International Residential Code (IRC).

Permitting:

• Most jurisdictions require plumbing and structural permits for rooftop solar water heaters. Passive systems generally face fewer electrical permitting hurdles since they have no pumps, but you still need to comply with local building codes for roof load, backflow prevention, and safety valves.

For a DIY walkthrough, see our step-by-step guide to installing a residential solar water heating system or our build-a-simple-batch-ICS-solar-water-heater-weekend-project.

Installation: Active Systems

Active systems are more complex and typically require professional installation, especially in cold climates. Key steps include:

1. Mount collectors on the roof: Orient south-facing; secure with flashing and rails. Collectors can be placed on flat or pitched roofs using tilt racks.
2. Install storage tank: Locate indoors (basement, garage) or in a heated space.
3. Run insulated piping: Connect collectors to the tank via a closed loop (indirect) or direct loop. Use UV-rated, freeze-protected insulation outdoors.
4. Install pump, controller, and sensors: Wire the solar heat water pump to the controller; mount temperature sensors on the collector outlet and tank.
5. Fill and pressurize (indirect): Mix propylene glycol to the correct freeze point; fill the loop and pressurize to ~20–30 psi.
6. Integrate backup heater: Connect the solar tank to feed your existing electric or gas heater, or use a dual-element tank with electric backup.
7. Commission and test: Verify pump operation, check for leaks, test safety valves, and confirm controller settings.

Electrical and plumbing permits are required. Many installers must be licensed for both plumbing and electrical work, and final inspection sign-off is typically mandatory.

For component details, see all the parts you need: pumps, controllers, valves, heat exchangers.

Maintenance: Passive Systems

One of the biggest advantages of a passive solar water heating system is its minimal maintenance requirements:

• Annual inspection: Check for leaks, corrosion, or loose mounts; clean collector glazing if dusty.
• Freeze protection: In regions with occasional frost, drain the system or use a freeze-protection valve. ICS systems in hard-freeze zones must be drained or winterized.
• Tank care: Replace anode rods every few years; flush sediment as needed.

Field Tip from the Author:

Keep the roof area around your passive system clear of debris and overhanging branches. Even minimal shading can reduce circulation efficiency. Also, test your anti-scald mixing valve annually—passive systems can produce very hot water on sunny summer days, risking scalding at the tap.

Maintenance: Active Systems

Active systems require more frequent upkeep due to their mechanical and electronic components:

• Annual inspection: Verify pump operation; check controller sensor readings; inspect piping insulation for UV damage.
• Glycol fluid: Test and replace glycol every 3–5 years. Degraded glycol can lose freeze protection and cause corrosion.
• Pump lifespan: Expect the solar water heater circulation pump to last 10–15 years. Watch for unusual noise, reduced flow, or failure to start.
• Controller and sensors: Ensure sensors are securely mounted and reading accurately. Replace batteries in any backup systems.
• Tank maintenance: Same as passive—anode rods, sediment flushing, relief valve testing.

Field Tip from the Author:

Avoid pump cavitation by ensuring the loop is fully purged of air during commissioning. Air pockets can cause the pump to run dry, overheat, and fail prematurely. Always use high-quality air vents at the collector outlet and bleed the system thoroughly before the first heating cycle.

For seasonal care in cold climates, see our cold-climate playbook: glycol loops, drainback, insulation.

Common Inspection and Permitting Hurdles

Based on recent DIY forum surveys and installer case studies (2020–2024), the most cited permitting challenges include:

• Electrical permits (active systems): Required for pump and controller wiring; often underestimated by DIYers.
• Structural permits: Rooftop collectors must meet wind and weight load requirements; some jurisdictions require engineering sign-off, especially for heavy ICS tanks.
• Plumbing permits: All systems need backflow prevention and pressure testing; inspectors may require proof of freeze protection in cold climates.
• Energy code compliance: Some regions mandate SRCC-certified systems or specific efficiency standards, which can necessitate professional certification.

DIY Feasibility:

• Passive systems are DIY-friendly in mild climates, with many successful builds documented in online communities like Reddit, Permies, and Instructables.
• Active systems are rarely DIY unless you have advanced HVAC, plumbing, or electrical experience. Even experienced DIYers often hire pros for critical steps like pump sizing, controller programming, and glycol loop pressurization.

---

🌡️ Performance in Different Climates & Household Sizes

Solar water heating efficiency and suitability vary dramatically by climate zone and household hot-water demand.

Climate Zone Performance

Climate Zone	Passive System Suitability	Active System Suitability	Thermal Efficiency (Passive)	Thermal Efficiency (Active)	Typical Annual Savings
Warm (Zones 1–3)	High (thermosiphon, ICS)	High	40–50%	60–70%	Passive: 40–50%; Active: 60–70%
Temperate (Zones 4–5)	Moderate (freeze risk)	High (preferred)	35–45%	55–65%	Passive: 30–40%; Active: 60–70%
Cold (Zones 6–8)	Low (not recommended)	High (active indirect)	<35%	50–65%	Passive: <30%; Active: 50–70%

Key Insights:

• Warm climates (southern California, Arizona, Florida): Both passive and active systems perform well. Passive solar water heating is cost-effective and low-maintenance here, often covering 40–50% of annual hot-water needs. Active systems can push savings to 60–70% with higher thermal efficiency.
• Temperate climates (Pacific Northwest, mid-Atlantic): Active systems are preferred due to occasional freezing and variable sun. Passive systems carry freeze risk unless equipped with draindown or seasonal shutdown capabilities.
• Cold climates (Northeast, high-altitude regions): Active indirect systems with glycol loops are essential. Evacuated-tube collectors excel here, maintaining strong winter performance and cold/cloudy day output. Passive systems are not recommended due to high freeze risk and poor efficiency below freezing.

For more on cold-weather performance, see our cold-climate playbook: glycol loops, drainback, insulation.

Household Size and Hot-Water Demand

System sizing should match your daily hot-water use:

• 1–2 people: A small passive thermosiphon unit (30–40 gallons) or compact active system with 1–2 collectors can cover most needs in sunny climates.
• 3–4 people: An 80-gallon active system with 2–3 flat-plate or evacuated-tube collectors is typical. Passive systems can work in warm regions but may need backup during high-demand periods.
• 5+ people: Large active systems with 3–4 collectors and dual tanks (solar preheat + backup) are recommended. Passive systems generally don’t scale well beyond moderate demand.

Rule of thumb:

• Target 50–100% of your pool’s surface area in collector area for solar pool heating.
• For domestic hot water, aim for ~20–40 square feet of collector area per person, adjusting for climate and desired solar fraction.

For detailed sizing, see our how it works explainer: collectors, tanks, heat transfer, backup.

Evacuated Tubes vs Flat-Plate Collectors

Flat-plate collectors are efficient in strong sun and warm climates, typically cost less per square foot, and are very durable. They’re the go-to choice for warm regions and moderate hot-water needs.

Evacuated-tube collectors deliver superior performance in cold, cloudy, or windy conditions. Their vacuum insulation minimizes heat loss, making them ideal for winter heating and high-temperature applications. They’re modular and replaceable, but cost slightly more per square foot.

For a detailed comparison, see our guide on evacuated tubes vs flat-plate collectors: performance in all climates.

---

❓ FAQs on Selecting a Solar Water Heating System

Which is more efficient: passive or active solar water heating?
Active systems are generally more efficient, with thermal efficiencies of 50–70% compared to 35–50% for passive systems. Active pumps and controllers optimize heat transfer and reduce losses, especially in variable weather.

Can I install a solar water heating system DIY?
Passive thermosiphon and ICS systems are often DIY-friendly in mild climates, with simpler plumbing and no electrical components. Active systems typically require professional installation due to their pumps, controllers, complex piping, and freeze protection—especially in cold climates. Check local permitting requirements before starting any DIY project.

Do passive solar water heaters work in winter?
Passive systems can preheat water in sunny winter weather, but they are vulnerable to freezing and perform poorly in cold climates. Active indirect systems with glycol loops are recommended for winter use in freeze-prone regions.

How long does a solar water heater last?
Quality collectors often last 20–30+ years. Passive systems have no pumps, so their lifespan depends mainly on tank and piping integrity. Active system pumps and controllers typically last 10–15 years and may need replacement, but the overall system can run for 20+ years with proper maintenance.

What are the pros and cons of thermosiphon solar water heating?
Pros: Simple, reliable, no electricity, low maintenance, works in power outages, lower cost.
Cons: Tank must be above collectors (structural and aesthetic challenges), limited freeze protection, lower efficiency than active systems, less flexible siting.

Is a solar water heating pump necessary for all systems?
No. Passive systems rely on natural convection and don’t use pumps. Active systems require a solar water heater circulation pump to move fluid between collectors and the tank for higher efficiency and flexible placement.

Which system is best for off-grid homes?
Passive systems are ideal for off-grid use because they operate without electricity and have minimal maintenance. Pair with a backup propane or wood-fired heater for cloudy periods or high demand.

How much roof area do I need?
Typically, plan for 20–40 square feet of collector area per person, depending on climate and hot-water use. Passive ICS units are compact; active systems may use 2–4 standard panels (each ~4×8 feet).

Can I use my existing water heater with solar?
Yes. Most homeowners use a two-tank setup: a solar preheat tank feeds into the existing electric or gas water heater, which acts as backup. This hybrid approach maximizes solar savings while ensuring reliable hot water.

For more answers, see our reader FAQ: worth it, winter, night, pool, RV—rapid answers.

---

🏁 Final Thoughts: Which System Fits Your Home?

Choosing between passive solar water heating and active solar water heating comes down to your climate, budget, roof structure, and maintenance preferences.

Go passive if you:

• Live in a warm, freeze-free climate (zones 1–3)
• Want the lowest upfront cost and simplest installation
• Value off-grid resilience and minimal maintenance
• Can accommodate a rooftop tank above collectors

Go active if you:

• Face cold winters or variable weather (zones 4–8)
• Need maximum thermal efficiency and year-round performance
• Want flexible tank placement (indoors, basement, garage)
• Have higher hot-water demand (3+ people) or want to scale for larger systems

Both types qualify for the 30% federal tax credit and can deliver significant long-term savings—often paying for themselves in 5–15 years and then providing net savings for another 10–20 years. With proper sizing, installation, and maintenance, solar water heating for homes is one of the most cost-effective renewable upgrades you can make.

Ready to take the next step?

• Explore our best complete solar water heating systems for home use for top-rated options.
• Learn about rebates and credits: how to qualify for solar hot water incentives to maximize your savings.
• Check out our step-by-step guide to installing a residential solar water heating system if you’re planning a DIY install.

---
